GENERÁTOR PCGU01

Katalog : 5201-3721
Dostupnost : na objednávku
(obvyklá max. doba dodání : 2 týdny)
přidat do mého seznamu oblíbených položek
Jakmile bude položka naskladněna, přijde Vám zpráva.

Zadejte Váš email :

nastavit hlídacího psa = pošle mail jakmile bude položka naskladněna
cena eshop s DPH :2.007,- Kč
cena na prodejně :2.080,- Kč
sleva :3,51 %

množstevní slevy eshop (Kč)
počet
bez DPHvč. DPH
1 ks
1.659,-2.007,-

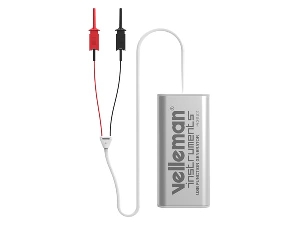

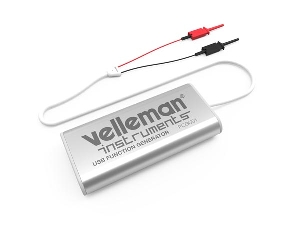

Generátor funkcí k PC přes USB.
The new PC USB miniature function generator is simple to use and has a frequency range of up to 1 MHz!
This nifty measuring instrument can generate sine, square and triangle waveforms, and it has a DAC resolution of 10 bits. To top things off, it has an output of 0.2 Vpp to 10 Vpp.

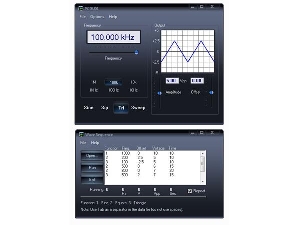

Download the dedicated Windows software and control the various signals. Among other things, the software includes a handy automated wave sequence generator.

Features
dedicated Windows software to control the various signals (free download)
software includes an automated wave sequence generator
design enclosure
test leads
free software download
USB cable

Specifications
DAC resolutions: 10 bits
frequency range: sine, triangle form 1 Hz to 1 MHz, square wave 1 Hz to 100 kHz
frequency setting resolution: 0.04 Hz
sweep function
amplitude range: 200 mVpp to 10 Vpp @ 1 kHz // no load / 0 V offset
amplitude range with offset: 200 mVpp to 7.5 Vpp @ 1 kHz // no load / -2.5 V to +2.5 V offset
offset range : from 0 to -2.5 V or +2.5 V max. (resolution 0.5% of full scale)
waveforms: sine, square and triangle
typical sine wave distortion (THD): < 0.02% @ 1 kHz / 0 dB / 600 Ohm
square wave rise/fall time: < 0.2 µs
output impedance: 50 Ohm
note: PC USB ground is connected to GND output
minimum system requirements:
Windows XP, Vista, 7, 8, 10
mouse or touchpad
free USB port 1.1 or 2.0
