RGB LED CONTROLLER - IR VERSION
(sestavený výrobek)

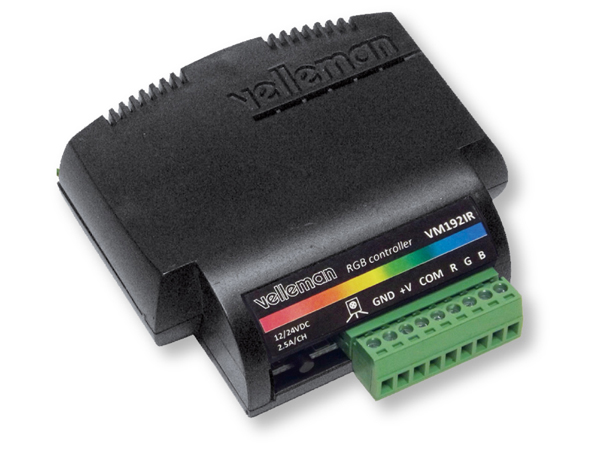

VM192IR is an infrared remote controlled RGB driver for 12 or 24 VDC LED strips. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust the intensity, regardless of the chosen colour or mode.
Features

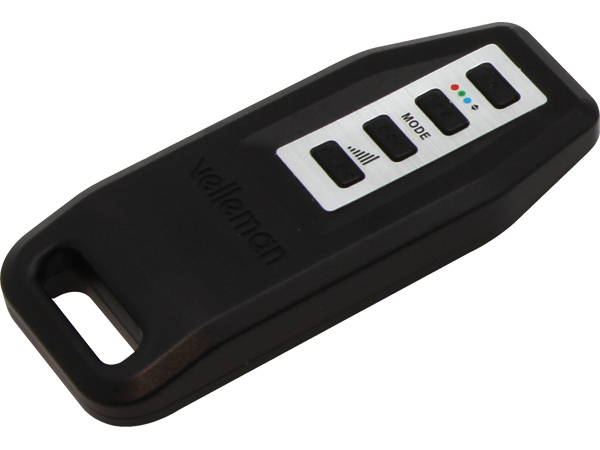

includes one 4-channel infrared remote

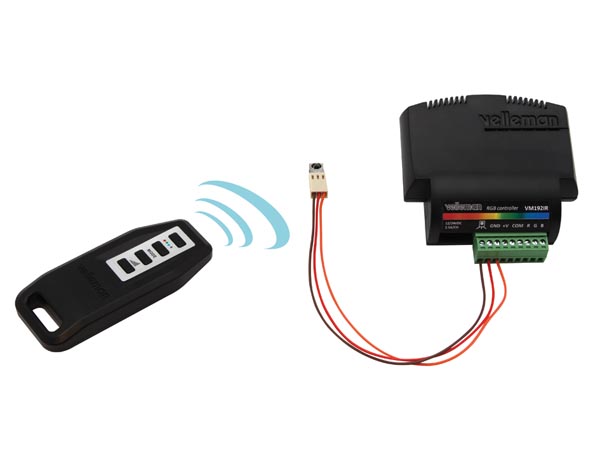

IR module can be placed up to 1 m away
colour, intensity and mode are retained and will be restored after a power
failure
speed determined by jumper setting

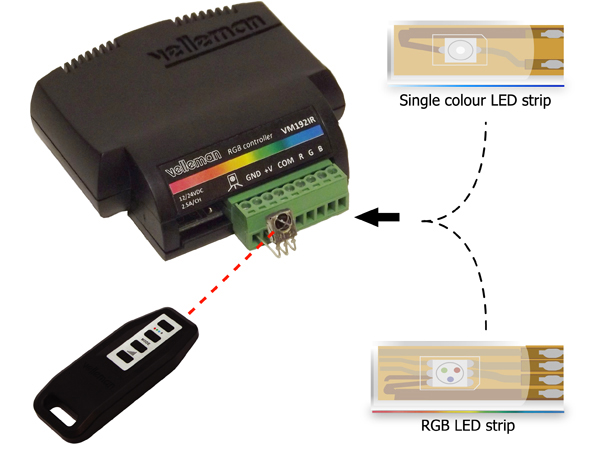

can also be used as a single channel LED dimmer
smooth manual scrolling through red-orange-yellow-green-blue-indigo-violet
with up/down buttons
fix a manually selected colour

Specifications

power supply: 12..24 VDC
current: 2.5 A/channel max. (30 W / 12 V, 60 W / 24 V max.)
PWM frequency /resolution: 245 Hz, 10-bit
intensity levels: 32
colour loop time (R->G->B->R): 50 s, 1 min 40 s, 2 min 30 s, or 3 min 20 s
max. ambient temp: 30 °C / 86 °F
remote range: up to 10 m (fresh battery, line of sight, no interference)
remote power supply: V23GA or GP23GAC 12 V battery (included)
dimensions:
controller: 80 x 70 x 23 mm
remote: 88 x 37 x 13 mm
