VMA205 WiFi ESP-WROOM-02 SHIELD

Katalog : 5505-047
Dostupnost : na objednávku
(obvyklá max. doba dodání : 2 týdny)
přidat do mého seznamu oblíbených položek
Jakmile bude položka naskladněna, přijde Vám zpráva.

Zadejte Váš email :

nastavit hlídacího psa = pošle mail jakmile bude položka naskladněna
cena eshop s DPH :1.112,- Kč
cena na prodejně :1.148,- Kč
sleva :3,14 %

množstevní slevy eshop (Kč)
počet
bez DPHvč. DPH
1 ks
919,201.112,-

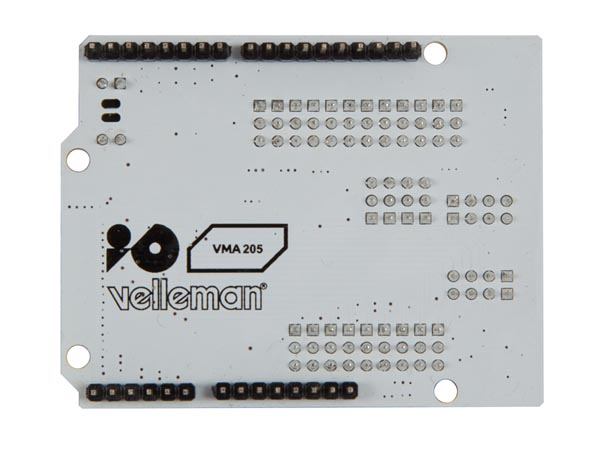

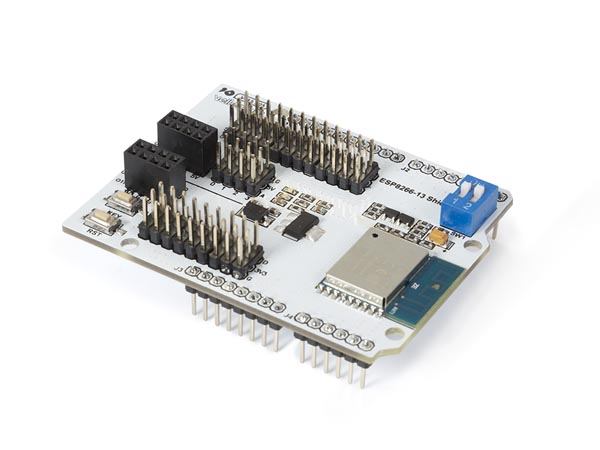

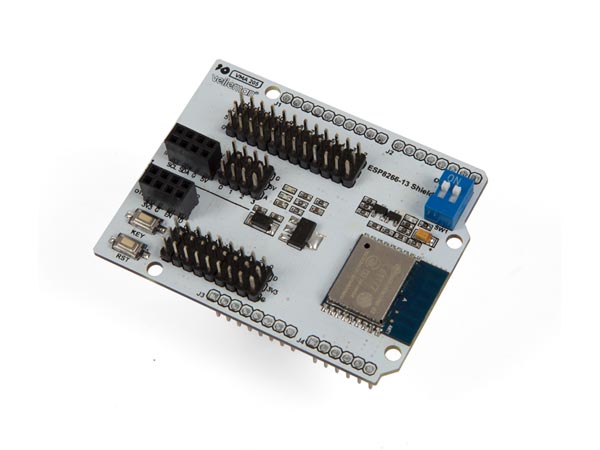

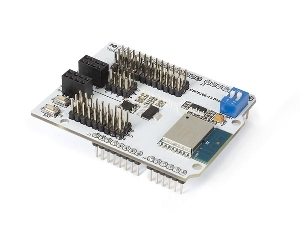

WiFi ESP-WROOM-02 SHIELD

This convenient ESP-WROOM-02 shield for Arduino includes a pre-soldered ESP8266 module, and power supply - so all the hard work is done and you will receive a plug-and-play ESP8266 solution for your Arduino.

You can start straight away with the ESP8266 in serial AT command serial mode, or if youre interested in deeper exploration of the ESP8266 you can upload different firmware such as NodeMCU and others.

All the GPIO pins are brought out to inline header pins, and the shield has a great online user manual so youll be up and running in no time at all.
Features

802.11 b / g n wireless standards
STA / AP modes support
TCP / IP protocol stack, One socket
supports standard TCP / UDP server and client
supports serial port baud rate configuration: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 74800 / 115200 bps
supports serial data bits: 5 / 6 / 7 / 8 bits
supports serial stop bits: 1/2 bit
pin-compatible with Arduino Uno, Mega
Arduino pinout: 2/3/4/5/6/7/8/9/10/11/12/13
ESP8266 GPIO pinout: 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX
KEY button: modes configuration
dual-ports DIP switches: switching Arduino and ESP-WROOM-02 / ESP8266

Specifications

WiFi operation current:
continuous transmission operation: 70 mA (200 mA max.)
idle mode: < 200 uA
serial WiFi transmission rate: 110-460800 bps
operating humidity: 10%-90% non-condensing
operating temperature: -10 to 70 °C
weight: ± 20 g
