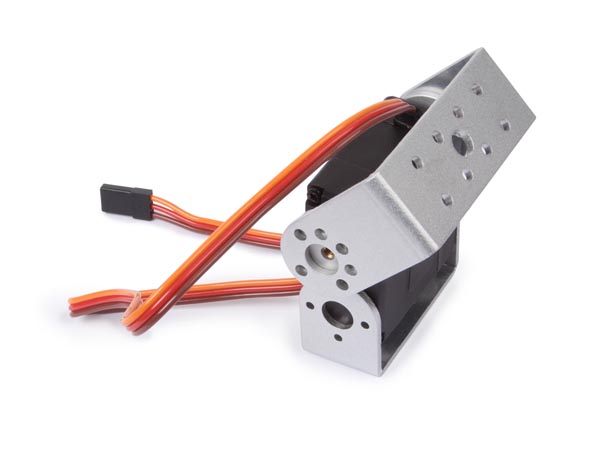

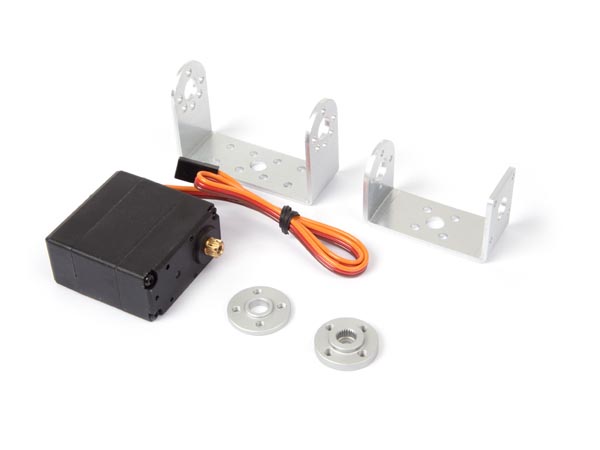

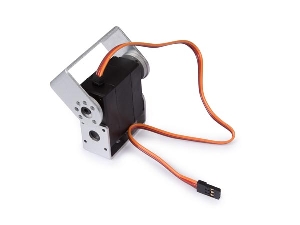

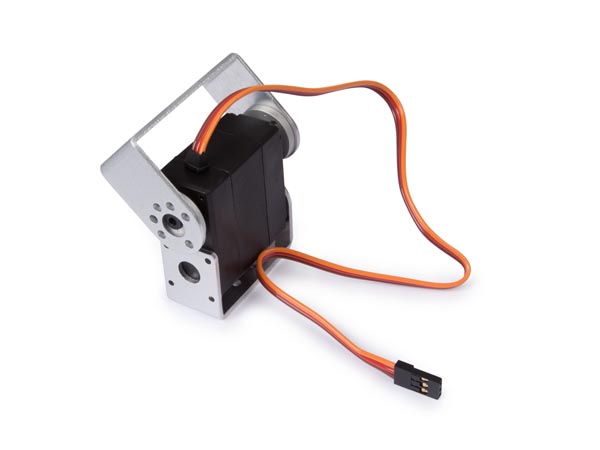

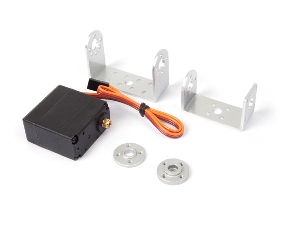

270° ROBOT DIGITAL DOUBLE SHAFT SERVO KIT

Specifications

operating speed (at no load): 0.14 sec/ 60° at 7.2 V
running current (at no load): 100 mA at 7.2 V
stall torque (at lock): 15 kg at 7.2 V
stall current (at lock): 1.5 A at 7.2 V
idle current (at stopped): 5 mA
operating frequency: 50 - 330 Hz
operating angle: 90°/135° (from 1000 to 2000 usec)
neutral position: 1500 usec
dead band width: 3 usec
rotating direction: counter clockwise (from 1000 to 2000 usec)
pulse width range: from 500 to 2500 usec
overall dimension: 40 x 20 x 40.5 mm
weight: 64 g
connector wire gauge: 28 PVC
connector wire length: 320 ± 5 mm
horn gear spline: 25T/5.80
reduction ratio: 310:1
operating temperature range: -10°C - 50°C
operating voltage: 5 V - 7.2 V
connection: orange = PWM, red = VCC , brown = GND
