VMW100 BRIGHTDOT WEARABLE DEVELOPMENT BOARD

Katalog : 5505-128
Dostupnost : na objednávku
(obvyklá max. doba dodání : 2 týdny)
přidat do mého seznamu oblíbených položek
Jakmile bude položka naskladněna, přijde Vám zpráva.

Zadejte Váš email :

nastavit hlídacího psa = pošle mail jakmile bude položka naskladněna
no pic
cena eshop s DPH :1.377,- Kč
cena na prodejně :1.421,- Kč
sleva :3,10 %

množstevní slevy eshop (Kč)
počet
bez DPHvč. DPH
1 ks
1.137,701.377,-

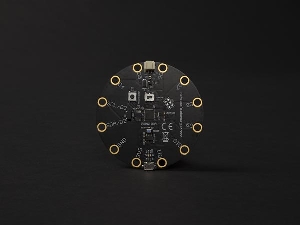

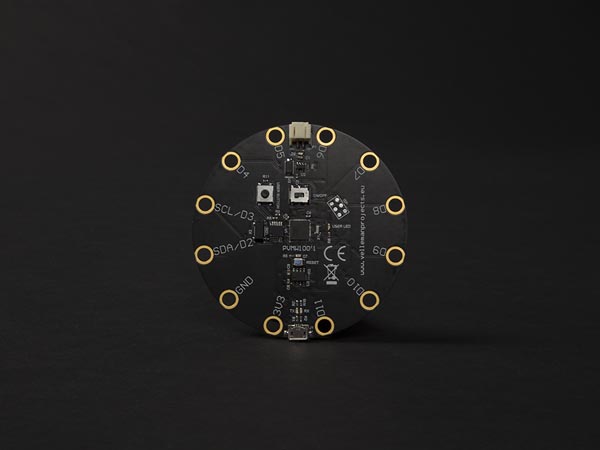

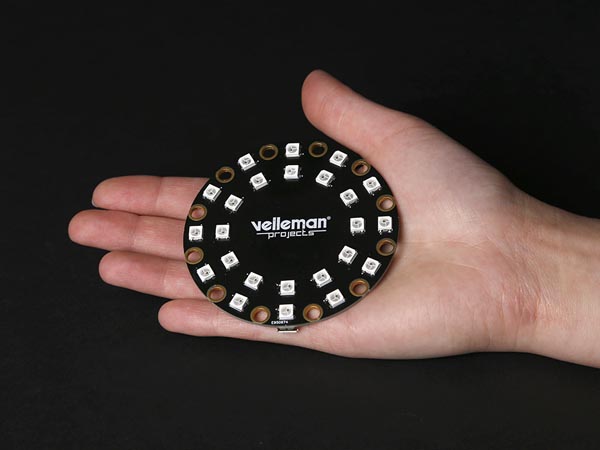

BRIGHTDOT WEARABLE DEVELOPMENT BOARD

This BrightDot is an ATmega32U4 based, Arduino compatible development board that you can use as a wearable or e-textile. Be creative and use the multicoloured RGB LEDs to brighten up your wardrobe, decorations, backpack or even make Christmas ornaments!

The alligator friendly pads/holes enable you to quickly prototype your creation. The pads were also made bigger to ease the use of conductive wire and they are gold plated to ensure durability. The integrated single cell LiPo charger makes the LED badge more versatile, even though it has an existing open system.

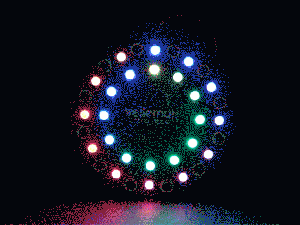

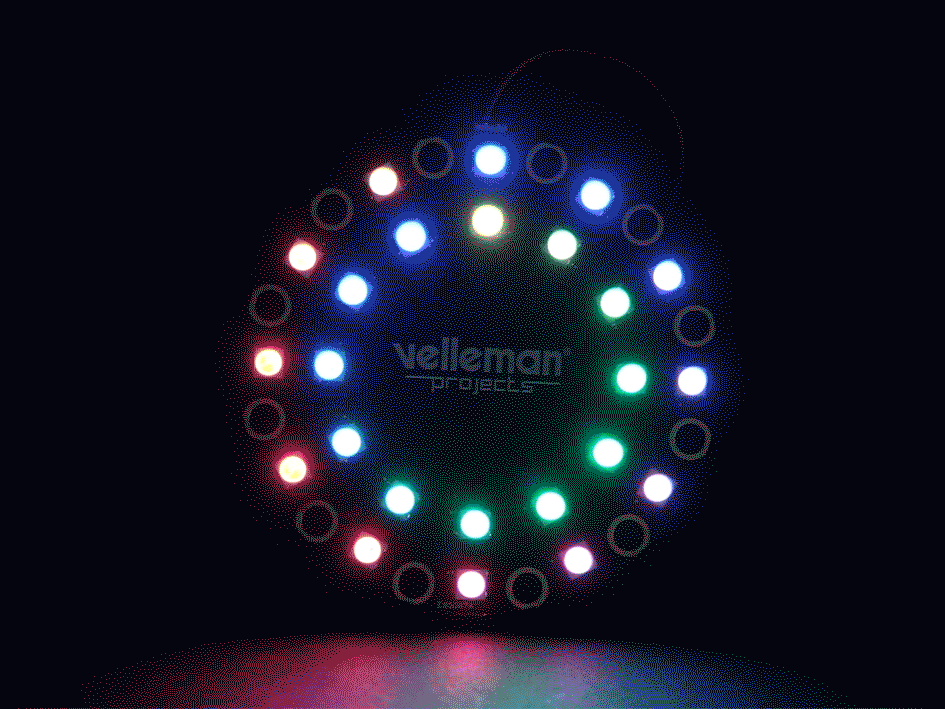

The 24 BrightDot LEDs (WS2812) enable you to display bright and colourful animations with just a single pin!

This module comes preloaded with a watch program and an onboard hardware real time clock. The real time clock enables you to keep the time, even when the ATMega32u4 is powered off (but the power supply must stay connected). With the onboard single colour LED and button, you can quickly debug and test programs without any wires. To top things off, a dedicated ON/OFF switch is included to keep the power consumption as low as possible when youre not using the device.

Features
Atmega32u4 @ 8 MHz
native USB support
24 BrightDot addressable RGB LEDs (WS2812)
ON/OFF switch
reset button
1 user button
1 user LED
PCF8523 RTC clock
10 GPIO sewable contacts and alligator clip friendly
charging indicator LED
RX/TX LED indication
LEDs are mounted in a clock form
free Arduino library
included:
an easy to use battery holder for 3 AA batteries (batteries not incl.)
USB 2.0 A to micro USB cable

Specifications
dimensions:
diameter: 8 cm
height: 9 mm
power supply: USB or battery powered
max. battery supply voltage: 6 V
current consumption: min. 20 mA, max. 1 A (when all RGB LEDs are on, software limited)
battery or USB pass through output: max. 1 A (depends on battery and USB capacity)
CPU speed: 8 MHz
