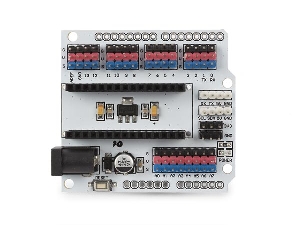

MULTIFUNCTION EXPANSION BOARD FOR ARDUINO

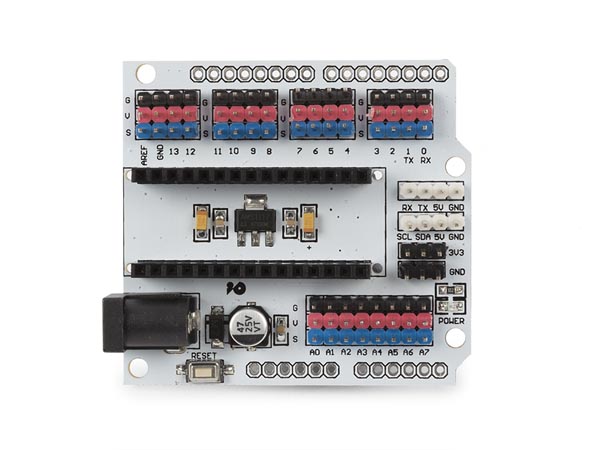

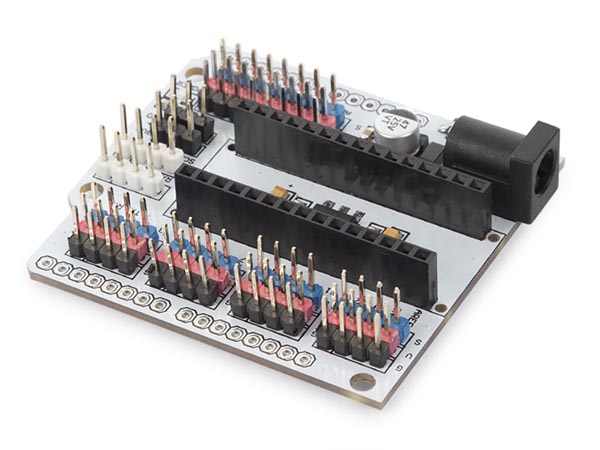

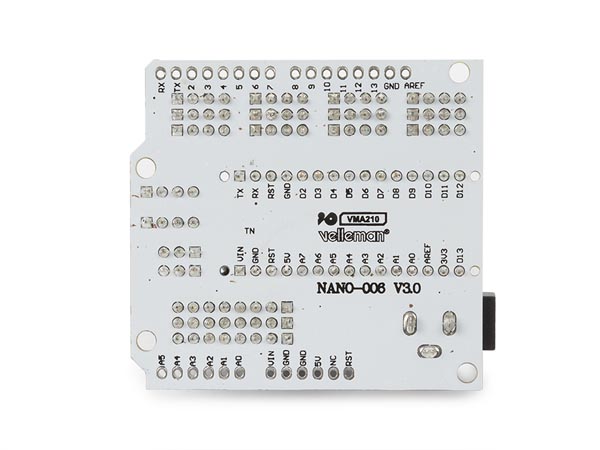

The VMA210 expansion board is designed to allow easy access of the interface pins of an Arduino Nano. Each DIO pin or analogue pin of the Nano is brought out to a convenient header. If you add header pins, this board can also be used as expansion shield for VMA100 and VMA101 (UNO, Mega).

Features
multi-functional for various applications
compact size
reliable quality for long time use
on-board voltage regulator 3.3 V / 1 A
Specifications
max. input voltage: 12 VDC
max. current : 1 A
DC connector: 5.5 / 2.1 mm
dimensions: 58 x 53 x 15 mm
weight: 20 g
